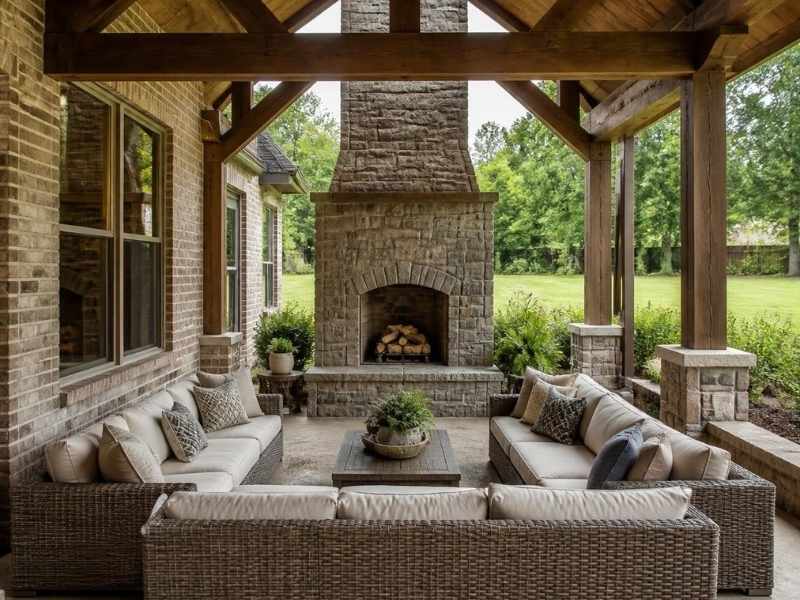

An outdoor fireplace turns a covered patio into a room you use all year. The roof adds shade and shelter, but it also adds rules. A fire under a roof needs the right spot, safe spacing and a chimney that clears the structure. Get the layout wrong and you get smoke, blocked walkways or a fire code problem. This guide shows developers how to fit the fireplace into a covered patio in a Madison, Alabama build.

This work still answers the building code. Alabama builds to the International Residential Code, and your local Madison office enforces it. Confirm the current edition before you start.

Choose a Location That Supports the Patio’s Main Use

Place the fireplace where it backs up how you already use the space. Start with the patio’s main job. A dining patio wants the fire as a warm backdrop, not in the middle of the table zone. A lounge patio wants the fire as the focal point people face.

Pick a spot that anchors one area. A corner or an end wall often works best on a covered patio. It keeps the fire out of the main flow and gives the chimney a clean run up. Center placement can split the space and crowd the posts.

Think about daily movement too. People walk from the house to the yard and back. Keep the fireplace off those paths. The fire should pull people in, not stand in their way.

Allow Enough Clearance Around the Firebox and Chimney

Give the firebox and chimney safe space from everything that can burn. A covered patio raises the stakes because the roof, posts and beams sit close to the heat. Code sets minimum gaps for a reason.

Hold clearance from these parts:

• The roof framing and ceiling above the firebox
• Wood posts and beams near the fireplace
• Walls and any built-in storage
• Furniture placed in front of the opening

The chimney is the big one. A masonry chimney must clear the roof by a set amount. The common rule is 3-2-10. The chimney rises at least 3 feet above the point where it passes the roof, and at least 2 feet above any part of the structure within 10 feet. Code also calls for an air gap between the chimney and combustible framing, often 1 to 2 inches depending on where the chimney runs. Confirm the exact figures for your build.

Arrange Seating Without Blocking Walkways

Face the seating at the fire while keeping the paths clear. Draw the traffic lines first. Mark the routes from the house door, the yard, the kitchen and the patio steps. Those routes stay open.

Set the furniture outside those lines. An L-shape or a U-shape of seating faces the fire and still leaves a way through. Keep a clear path of about 3 feet so people move without turning sideways. Never trap a walkway between the seats and the flames.

Leave breathing room at the opening. Radiant heat reaches out past the firebox. Chairs set too close get uncomfortable fast. A little extra space keeps guests safe and the traffic smooth.

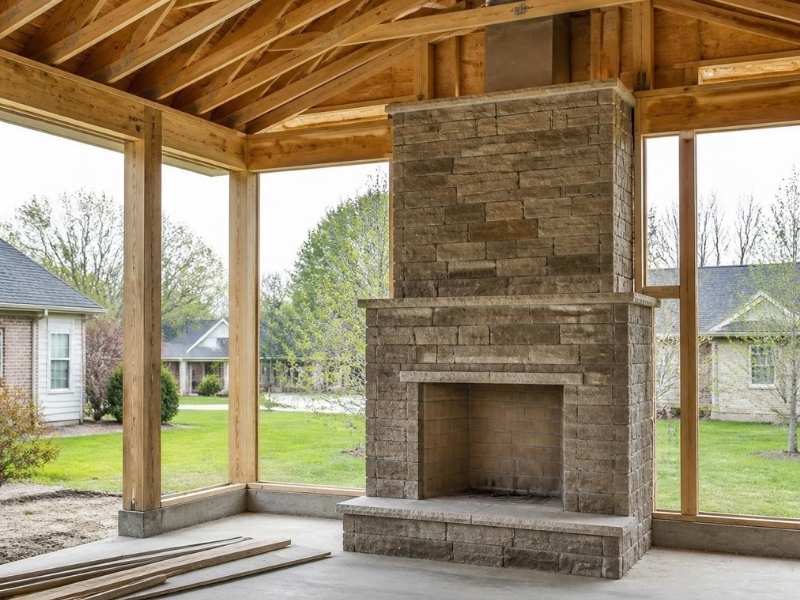

Coordinate the Fireplace With the Roofline and Support Columns

Line the fireplace and chimney up with the roof and posts before framing starts. The roof shape drives the chimney height. A tall ridge or a steep pitch means a taller chimney to meet the 3-2-10 rule. Place the fireplace where that chimney can rise straight past the roof.

Work around the posts, not against them. Support columns carry the roof, so you can’t move them on a whim. Set the fireplace so the posts frame the view instead of blocking it. A hearth jammed against a post looks cramped and blocks the heat.

Match the plan to the ceiling type. A gable or open ceiling lets smoke rise before it vents. A low flat ceiling traps air and needs extra care with chimney height. Plan the roof penetration with your framer early. Cutting one in later is messy and weakens the structure.

Plan for Smoke Direction, Ventilation, and Weather Exposure

Plan for wind, airflow and rain so smoke leaves and the fireplace lasts. Wind can push smoke back under the roof. Note which way the wind usually blows across your site. Then place and size the chimney to work with it, not against it.

Airflow matters under a roof. A covered patio that is closed on too many sides traps smoke against the ceiling. Keep at least two sides open so air moves through. A correct chimney height and a good cap help the fire draw.

The weather still reaches a covered fireplace. Wind-driven rain hits the opening and the chimney top. Add a chimney cap or crown to keep water out of the flue. Pick stone and mortar that handle freeze and thaw. Slope the hearth area so water drains away instead of pooling.

Frequently Asked Questions

How tall does the chimney need to be on a covered patio?

Follow the 3-2-10 rule. The chimney should rise at least 3 feet above the spot where it passes the roof. It should also stand at least 2 feet above any part of the structure within 10 feet. A covered patio roof counts, so plan the height around it. Confirm the figure with your local code.

How far should an outdoor fireplace sit from the patio roof and posts?

Far enough to meet code clearance for combustible material. Masonry chimneys often need a 1 to 2 inch air gap from wood framing depending on the location, but confirm your local rule. Keep wood posts, beams and the ceiling out of that gap. Set furniture back from the opening as well, since radiant heat carries.

Can I build a wood-burning fireplace under a covered patio?

Yes, if the chimney height and clearances are right and the space is not closed in on all sides. Wood fires need a tall chimney to draft and vent under a roof. A gas fireplace is another option and uses different venting. Check which fuel your design and code allow.

How do I keep smoke from collecting under the patio roof?

Get the chimney height right and keep the patio open on at least two sides. Smoke rises and needs a clear path out. A short chimney or a boxed-in ceiling traps it. A good cap and attention to wind direction also help the fire draw clean.

Does a covered patio need more fire clearance than an open patio?

In most cases, yes. An open patio has an open sky above the fire. A covered patio adds a roof, posts and beams that can burn, so clearance and chimney height matter more. Plan those gaps before you build, not after the roof is up.
